Product Description

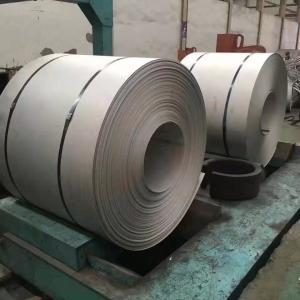

cold Rolled Stainless Steel Coil/Sheet:
Steel Grade
301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, L4, 420J1, 321, 410S, 410L, 436L, 443, LH, L1, S32304, 314, 347, 430, 309S, 304, 439, 204C2, 425M, 409L, 420J2, 436, 445, 304L, 405, 370, S32101, 904L, 444, 301LN, 305, 429, 304J1, 317L
Standard
ASTM A240/A240M, ASIffi SA-240, SA-24OM, JIS G 4304, EN 10028-7, EN 10088-2
Thickness(mm): 0.3-3mm
Width(mm) :1000-2000
Length(mm) :Sheet:≤6000; Coil
Status:
Solid Solution and Pickling; Annealing and Pickling
Tolerance:±1%
| Product name | Stainless steel plate |
| Material | 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L,347H
TP304/TP304L/TP316/TP316L/TP321/347H, TP321 /TP321H,TP310 /TP310S,TP410/TP410,TP403S, S31803/S32205, S32750 |
| Usefulness | It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs,and screen. |
| Thickness | 0.3mm-3.00mm(CR) 3.00mm-200mm(HR) |
| Width | 600mm,1000mm,1219mm, 1250mm,1500mm,1800mm,2000mm,2500mm,etc |
| Tolerance | ±1% |
| Length | 2000mm,2440mm,3000mm,5800mm,6000mm,etc |
1. The hot-rolled stainless steel plate has low hardness, easy processing and good ductility.
2. The strength of hot-rolled stainless steel plate is relatively low, and the surface quality is poor (oxidizedlow finish), but the plasticity is good, and it is generally medium and thick plate.
3. The mechanical properties of hot-rolled stainless steel plates are far inferior to cold processing and second to forging processing, but they have better toughness and ductility.
Product Parameters
Product Introduction
Stainless steel plate is an alloy steel with smooth surface, high weldability, corrosion resistance, polishability, heat
resistance, corrosion resistance and other characteristics. It is widely used in various industries and is an important material
in modern industry. Stainless steel is divided into austenitic stainless steel, ferritic stainless steel, martensitic stainless
steel, and duplex stainless steel according to the structure state.
Austenitic Stainless Steel: stainless steel with an austenitic structure at room temperature. Steel contains Cr≈18%, Ni≈8%-25% andC≈0.1%. Steel has high toughness and plasticity, but low strength.
Martensitic Stainless Steel: A steel whose mechanical properties can be adjusted by heat treatment. It has different strength and toughness at different tempering temperatures.
Duplex Stainless Steel: Austenitic and ferrite each account for about half of the structure. When the C content is low, the Cr
content is 18% to 28%, and the Ni content is 3% to 10%. Some steels also contain alloying elements such as Mo, Cu, Si, Nb, Ti, andN. This type of steel has the characteristics of austenitic and ferritic stainless steel
Ferritic Stainless Steel: It contains 15% to 30% chromium and has a body-centered cubic crystal structure. This type of steel generally does not contain nickel, and sometimes contains a small amount of Mo, Ti, Nb and other elements. This type of steel has the characteristics of large thermal conductivity, small expansion coefficient, good oxidation resistance, and excellent stress corrosion resistance. | Chemical Properties of Frequently-used Stainless Steel Material Grade |
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.455 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.441 | | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 |
| S31803 | SAF2205 | 1.4462 | | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 |
| N08904 | 904L | 1.4539 | | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 |
production process
Stainless steels are rolled into sheet,plate and coil to be used in:Construction,decoration,elevator door, food industry, convey belt,stairs,Machine etc.
Our Advantages
1. The hot-rolled stainless steel plate has low hardness, easy processing and good ductility.
2. The strength of hot-rolled stainless steel plate is relatively low, and the surface quality is poor (oxidizedlow finish), but the plasticity is good, and it is generally medium and thick plate.
3. The mechanical properties of hot-rolled stainless steel plates are far inferior to cold processing and second to forging processing, but they have better toughness and ductility. application
